Egg Tray Washers

The egg tray washer is an industrial washing system designed to remove stubborn stains from the plastic egg trays, including egg wash, chicken feathers, crushed eggshells, and chicken droppings.

Egg Tray Washer

Poultry farms, food processing plants, and some vaccine manufacturers use plastic egg trays to hold or transport fresh eggs. To comply with local industry hygiene standards, companies must clean and sterilize these plastic trays regularly, preventing their products from being exposed to contaminants such as dust, egg wash, and microorganisms on the tray surface.

Manual cleaning is usually not allowed for these industries, as workers can’t ensure each tray gets the same cleaning results, and the capacity of trays that can be washed per hour is minimal, which is why most companies choose industrial egg tray washing machine.

Our egg tray washers consist of an unstacking zone, a pre-wash zone, a main wash zone, a drying zone, and a stacking zone. They automate the daily cleaning and sanitizing of egg trays, ensuring they meet food hygiene standards.

egg tray washer
+
Happy Clients
+
Hours Saved
+
Countries

Key Advantages

Excellent cleaning

It can effectively remove egg wash, chicken feathers, crushed eggshells, and other contaminants from egg trays, thus avoiding cross-contamination.

energy-saving

It utilizes a closed-loop water recycling structure, reducing water and chemical consumption by 30%. In addition, it minimizes heat loss to reduce power consumption for tank heating.

Easy To Operate

The user-friendly control panel makes it easy for the employee to operate the machine according to manual.

Options Available

We can offer a variety of options to meet your unique cleaning needs, such as one-person operation, egg tray return conveyor, rotary filter, 99% drying, etc.

Explore our practical egg tray washers

Case Studies

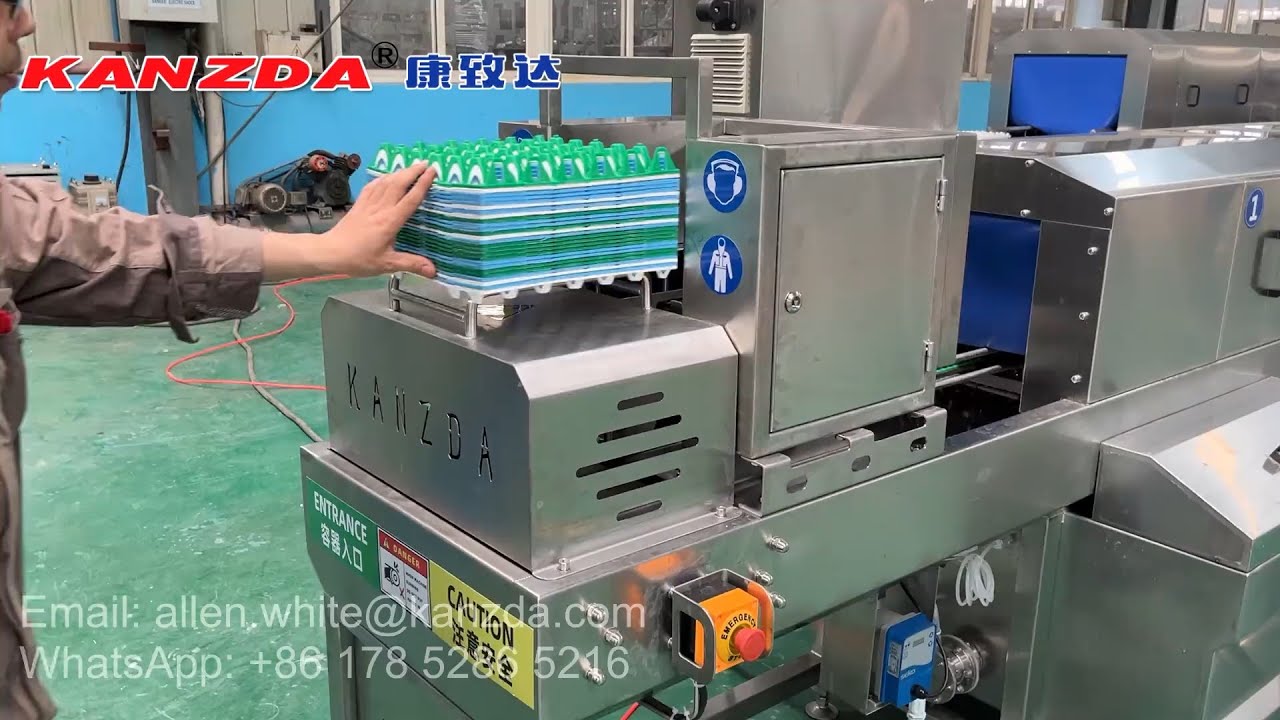

KW-1200

This egg tray washer machine can clean 1200 trays per hour and blow away 90% of the water on the egg tray surface, making it suitable for start-ups or businesses that do not require a high cleaning capacity.

Only one employee is needed to operate the machine. The cleaned egg trays will be automatically stacked and transported to the temporary storage area.

Model: KW-1200
Size: 5880*1400*1600 mm
Capacity: Washes 1200 egg trays per hour
Drying effect: Approximately 90%
Control method: Button Control
Required operators: 1

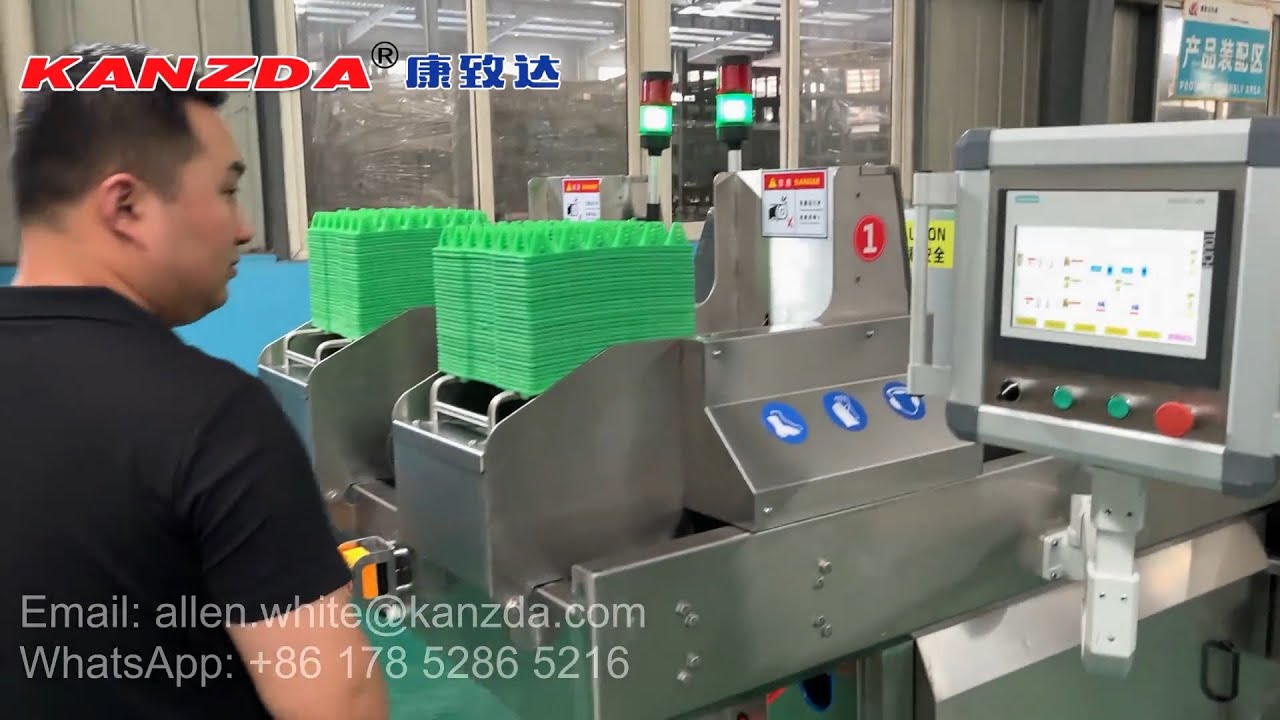

KW-5000

If your facility needs to wash a large number of egg trays every day, the KW-5000 egg tray washer will be a better choice, as it can clean 5000 plastic egg trays per hour. It has two separate tracks, which can handle two different sizes of egg trays.

Its bottom is entirely closed, which can reduce the noise generated by the water pump and air blower. In addition, it has a return conveyor system to transport the cleaned egg trays back to the other side of the operator, effectively reducing the operator’s labor intensity.

Model: KW-5000
Size: 7000*2800*1500 mm
Capacity: Washes 5000 egg trays per hour
Drying effect: Approximately 90%
Control method: HMI+PLC Control
Required operators: 1

How It Works

01

De-stack

The stacker will automatically break up a dozen egg trays into individual pieces, and then feed them into the washing zone.

02

Washing

The egg trays will enter the pre-wash and main wash zones in turn for deep cleaning, which effectively removes stains from their surfaces and ensures that the placed eggs will not be contaminated.

03

Drying

Use air blowers + air knives to blow most of the water off the egg tray surface. If you need to put these egg trays into a new turnover process immediately, we can add a hot air dryer to achieve 99% dryness.

04

Stack

The stacker will automatically stack the processed egg trays and move them to the temporary storage area. The operator can set the number of stackable trays through the HMI, such as any value between 2 and 25.

Features

Food-grade 304 stainless steel construction
Tailor-made based on your egg tray size
Washes up to 5,000 egg trays per hour
Independent washing zones
Adjustable conveyor speed
Dual water filter systems
Automatic water refill and water shortage protection
Automatic de-stacking and stacking
Globally well-known accessories
Safety interlocks on access doors
Easily accessible emergency stop buttons
Dosing pump for automatic refilling of disinfectant
Complies with your local three-phase voltage
